# INTERPHASE CORPORATION
4815 EISA ATM ADAPTER REV. C (RJ-45 UTP)
NIC Type ATM (OC-3c)
Maximum Onboard Memory 128KB RAM
Boot ROM Not available
Network Transfer Rate 155Mbps
Topology Star
Wire Type Unshielded twisted pair
Data Bus EISA
Card Size Full height, half length

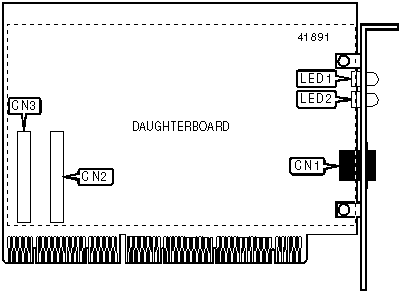

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| UTP connector | CN1 | Daughterboard | CN3 |
| | | connectors | |
|----------------------+-------+---------------------+-------|
| Daughterboard | CN2 | | |
| connectors | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | Power is on |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Driver is running |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Power is off or card failed |
| | | | power-up self-test |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
