# INTERPHASE CORPORATION
4515 PCI ATM ADAPTER (RJ-45 UTP)
NIC Type ATM (OC-3c)
Maximum Onboard Memory 1MB RAM/128KB SRAM
Boot ROM Not available
Network Transfer Rate 155Mbps
Topology Star
Wire Type Unshielded twisted pair
Data Bus 32-bit PCI mezzanine
IMG IMG 1
+------------------------------------------------------------+

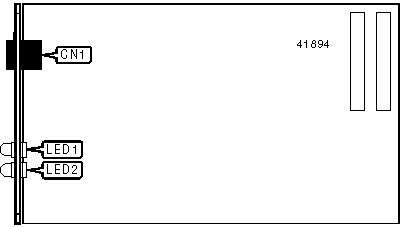

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | Network connection is broken |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | On | Power is on |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Blinking | Driver is running |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Off | Power is off or card failed |
| | | | power-up self-test |
+------------------------------------------------------------+
