# INTERPHASE CORPORATION
5515 PCI ATM ADAPTER (SC FIBER)
NIC Type ATM (OC-3c)
Maximum Onboard Memory 1MB RAM/128KB SRAM
Boot ROM Not available
Network Transfer Rate 155Mbps
Topology Star
Wire Type Fiber optic cable
Data Bus 32-bit PCI
Card Size Full height, half length

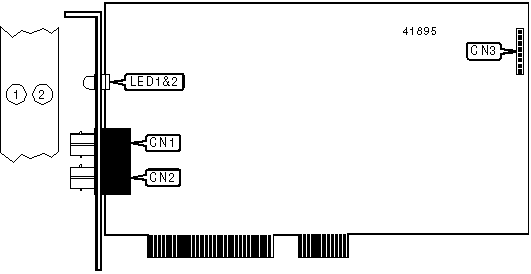

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------------+-------+--------------+-------|
| Fiber optic SC receive | CN1 | Unidentified | CN3 |
| cable connector | | | |
|-----------------------------+-------+--------------+-------|
| Fiber optic SC transmit | CN2 | | |
| cable connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | Power is on |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Driver is running |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Power is off or card failed |
| | | | power-up self-test |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
