# INTERPHASE CORPORATION
4615 SBUS ATM ADAPTER (SC FIBER)
NIC Type ATM (TAXI, OC-3c)
Boot ROM Not available
Network Transfer Rate 100Mbps/155Mbps
Topology Star
Wire Type Fiber optic cable
Data Bus SBus

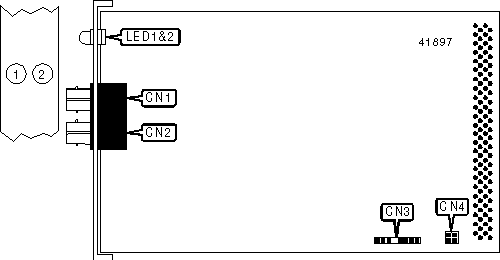

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------------+-------+--------------+-------|
| Fiber optic SC cable | CN1 | Unidentified | CN3 |
| connector | | | |
|-----------------------------+-------+--------------+-------|
| Fiber optic SC cable | CN2 | Unidentified | CN4 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Green | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED1 | Green | Off | Network connection is broken |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | On | Power is on |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Blinking | Driver is running |
|------+--------+----------+---------------------------------|
| LED2 | Yellow | Off | Power is off or card failed |
| | | | power-up self-test |
+------------------------------------------------------------+
