       # INTERPHASE CORPORATION

          4615 SBUS ATM ADAPTER (RJ-45 UTP)

          NIC Type              ATM (OC-3c)
          Boot ROM              Not available
          Network Transfer Rate 155Mbps
          Topology              Star
          Wire Type             Unshielded twisted pair
          Data Bus              SBus

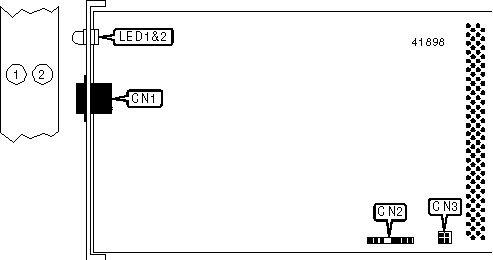

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | UTP connector        |  CN1  | Unidentified        |  CN3  |
          |----------------------+-------+---------------------+-------|
          | Unidentified         |  CN2  |                     |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color  |  Status  |            Condition            |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |    On    |   Network connection is good    |
          |------+--------+----------+---------------------------------|
          | LED1 | Green  |   Off    |  Network connection is broken   |
          |------+--------+----------+---------------------------------|
          | LED2 | Yellow |    On    |           Power is on           |
          |------+--------+----------+---------------------------------|
          | LED2 | Yellow | Blinking |        Driver is running        |
          |------+--------+----------+---------------------------------|
          | LED2 | Yellow |   Off    |   Power is off or card failed   |
          |      |        |          |       power-up self-test        |
          +------------------------------------------------------------+
