# KATRON TECHNOLOGIES, INC.
ET-32P BNC
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear bus
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI

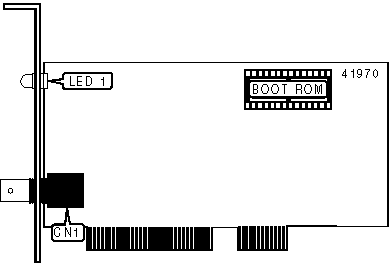

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RG-58A/U | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| Note: Function of LED 1 is unidentified. |
+------------------------------------------------------------+
