# LINKSYS
ETHER16 LAN PLUG-N-PLAY CARD (LNE2000PNP)
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

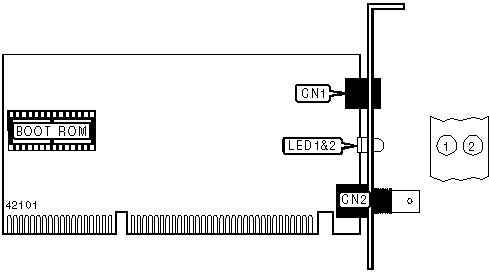

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+---------+------------------+---------|
| RJ-45 UTP connector | CN1 | BNC connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | Power is on |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Blinking | Data is being transmitted |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Power is off |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On | Network connection is |
| | | | good |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Blinking | Data is being received |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Network connection is |
| | | | broken |
+------------------------------------------------------------+
