# KATRON TECHNOLOGIES, INC.
KF-223TX, KF-230TX
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type RJ-45 Unshielded twisted pair
Data Bus 32-bit PCI

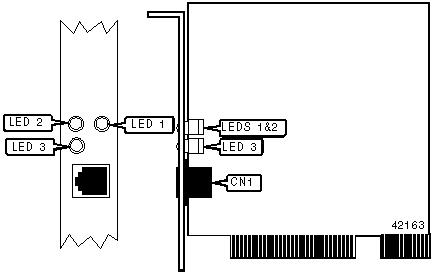

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | Network connection is |
| | | | good at 100 Mbps |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Network connection is |
| | | | broken at 100 Mbps |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | On | Network connection is |
| | | | good at 10 Mbps |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Network connection is |
| | | | broken at 10 Mbps |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Blinking | Data is being transmitted |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Data is not being |
| | | | transmitted |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| The adapter automatically senses the connection speed, |
| switches to either 10 Mbps or 100 Mbps and indicates the |
| link status on the LEDs. Location of Boot ROM is |
| unidentified. |
+------------------------------------------------------------+
