       # INTERPHASE CORPORATION

          4811 E/FDDI ADAPTER (DAS MIC CONNECTION)

          Card Type              Network Interface Card
          NIC Type               FDDI
          Maximum Onboard Memory 128KB
          Boot ROM               Unidentified
          Network Transfer Rate  100Mbps
          Topology               Ring, Peer-Peer
          Wiring Type            Fiber optic cable
          Data Bus               32-bit EISA

   IMG IMG 1


          +------------------------------------------------------------+

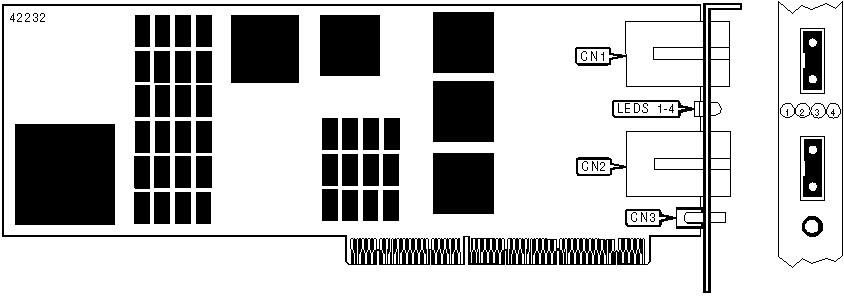

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      |  Label   |     Function     |  Label   |
          |-------------------+----------+------------------+----------|
          | Fiber optic       |   CN1    | Optical Bypass   |   CN3    |
          | connector - MIC   |          | Switch jack      |          |
          | (Phy A)           |          |                  |          |
          |-------------------+----------+------------------+----------|
          | Fiber optic       |   CN2    |                  |          |
          | connector - MIC   |          |                  |          |
          | (Phy B)           |          |                  |          |
          |------------------------------------------------------------|
          | Note: Type A (Phy A) or Type B (Phy B) connectors are      |
          | designated by a labeled key in the side of the male MIC.   |
          | CN1 is keyed for an A type connector, and CN2 is keyed for |
          | a B type connector.                                        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |   LED1    |   LED2    |   LED3    |   LED3   |  Condition  |
          | (Yellow)  | (Yellow)  |  (Green)  | (Green)  |             |
          |-----------+-----------+-----------+----------+-------------|
          |    Off    |    Off    |    Off    |    On    |  Power to   |
          |           |           |           |          |    card     |
          |-----------+-----------+-----------+----------+-------------|
          |    On     |    Off    |    Off    |    On    |  Power on   |
          |           |           |           |          | diagnostics |
          |-----------+-----------+-----------+----------+-------------|
          |    Off    |    Off    |    On     |    On    | Diagnostics |
          |           |           |           |          |   passed    |
          |-----------+-----------+-----------+----------+-------------|
          |    Off    | Blinking  |    On     |    On    | CB Running  |
          |-----------+-----------+-----------+----------+-------------|
          |    Off    |    Off    | Blinking  |    On    | RC Running  |
          |-----------+-----------+-----------+----------+-------------|
          |    Off    |    On     | Blinking  |    On    |    Ring     |
          |           |           |           |          | connection  |
          |           |           |           |          |    good     |
          |-----------+-----------+-----------+----------+-------------|
          |    On     |    Off    |    Off    |    On    |   Adapter   |
          |           |           |           |          |   Failure   |
          |------------------------------------------------------------|
          | Note: Definitions of "CB" and "RC" are unidentified.       |
          +------------------------------------------------------------+

   IMG IMG 2


          +------------------------------------------------------------+

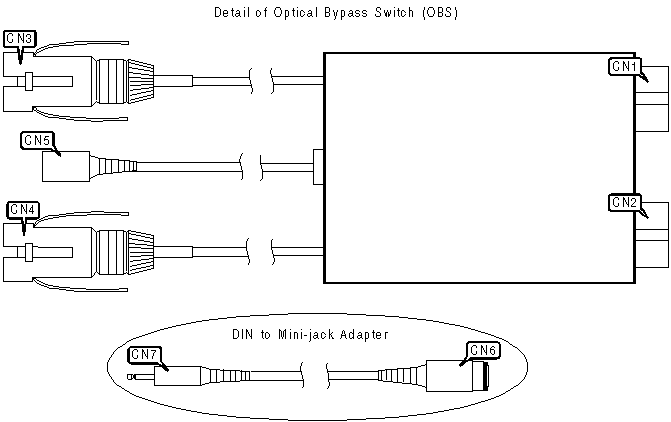

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function        | Label |      Function      | Label |
          |-----------------------+-------+--------------------+-------|
          | Fiber optic connector |  CN1  | 6-pin DIN socket   |  CN5  |
          | - MIC (Phy A)         |       | (Optical Bypass    |       |
          |                       |       | Switch)            |       |
          |-----------------------+-------+--------------------+-------|
          | Fiber optic connector |  CN2  | 6-pin DIN socket   |  CN6  |
          | - MIC (Phy B)         |       | (Optical Bypass    |       |
          |                       |       | Switch)            |       |
          |-----------------------+-------+--------------------+-------|
          | Fiber optic connector |  CN3  | Mini-jack (Optical |  CN7  |
          | - MIC (male) (Phy A)  |       | Bypass Switch)     |       |
          |-----------------------+-------+--------------------+-------|
          | Fiber optic connector |  CN4  |                    |       |
          | - MIC (male) (Phy B)  |       |                    |       |
          |------------------------------------------------------------|
          | Note: Type A (Phy A) or Type B (Phy B) connectors are      |
          | designated by a labeled key in the side of the             |
          |                                                            |
          | male MIC. CN1 and CN3 are keyed for A type connectors, and |
          | CN2 and CN4 are keyed for B type                           |
          |                                                            |
          | connectors.                                                |
          |                                                            |
          | The Dual Attachment Station - MIC version of the 4811      |
          | E/FDDI Adapter also requires an adapter                    |
          |                                                            |
          | cable (see "DIN to Mini-jack Adapter" in above diagram) in |
          | order to properly connect the Optical                      |
          |                                                            |
          | Bypass Switch.                                             |
          +------------------------------------------------------------+
