# INTERPHASE CORPORATION
5511 PCI FDDI ADAPTER (DAS SC DUPLEX PB05511-000)
Card Type Network Interface Card
NIC Type FDDI
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 100Mbps
Topology Ring, Peer-Peer
Wiring Type Fiber optic cable
Data Bus 32-bit PCI

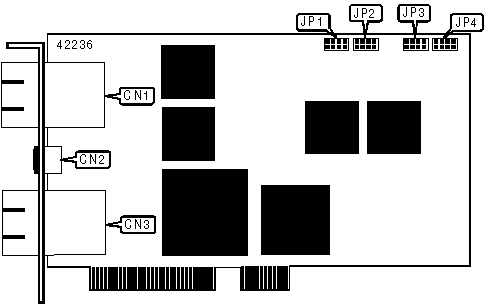

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Fiber optic connector - | CN1 | Fiber optic | CN3 |
| SC (Port A) | | connector - SC | |
| | | (Port B) | |
|---------------------------+-------+----------------+-------|
| 6-pin DIN (Optical Bypass | CN2 | | |
| Switch) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter. | | |
+------------------------------------------------------------+
