# INTERPHASE CORPORATION
5511 PCI FDDI ADAPTER (SAS SC DUPLEX PB05511-000)
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 100Mbps
Topology Ring, Peer-Peer
Wiring Type Fiber optic cable
Data Bus 32-bit PCI

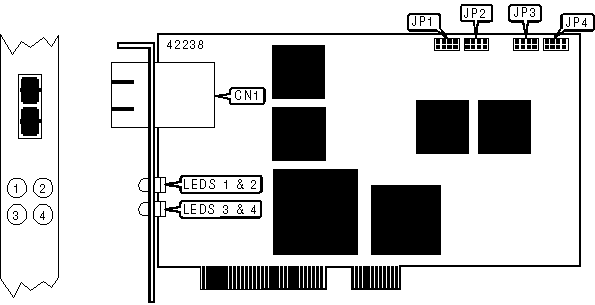

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Fiber optic connector - SC | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter. | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter. | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) CONTINUED |
|------------------------------------------------------------|
| LED1 | LED2 | LED3 | LED4 | Condition |
|-------+-------+----------+----------+----------------------|
| On | Off | On | Blinking | Power-on diagnostics |
|-------+-------+----------+----------+----------------------|
| On | Off | Blinking | Off | Connecting to ring |
|-------+-------+----------+----------+----------------------|
| On | Off | Blinking | On | Ring connected |
|-------+-------+----------+----------+----------------------|
| On | On | Off | Off | Adapter Failure |
+------------------------------------------------------------+
