# INTERPHASE CORPORATION
5511 PCI CDDI ADAPTER (SAS UTP PB05511-000)
Card Type Network Interface Card
NIC Type CDDI
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 100Mbps
Topology Ring, Peer-Peer
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

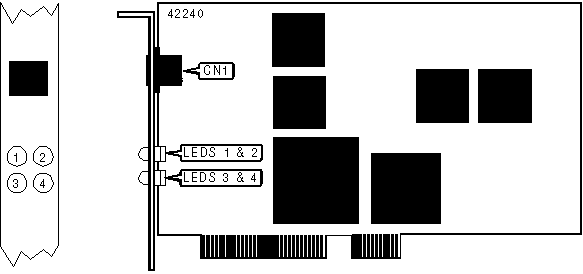

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| UTP via RJ-45 connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) CONTINUED |
|------------------------------------------------------------|
| LED1 | LED2 | LED3 | LED4 | Condition |
|-------+-------+----------+----------+----------------------|
| On | Off | On | Blinking | Power-on diagnostics |
|-------+-------+----------+----------+----------------------|
| On | Off | Blinking | Off | Connecting to ring |
|-------+-------+----------+----------+----------------------|
| On | Off | Blinking | On | Ring connected |
|-------+-------+----------+----------+----------------------|
| On | On | Off | Off | Adapter Failure |
+------------------------------------------------------------+
