# INTEL CORPORATION
ETHEREXPRESS PRO/100 T4 PCI LAN ADAPTER, ETHEREXPRESS PRO/100
TX PCI/LAN ADAPTER
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 100Mbps/10Mbps
Topology Star
Wiring Type RJ-45 Shielded twisted pair
RJ-45 Unshielded twisted pair
Data Bus 32-bit PCI

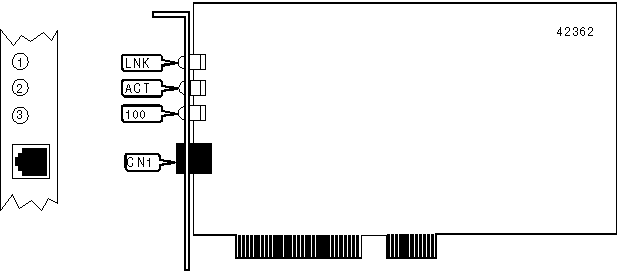

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP/STP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LED LABELS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Link LED | LNK |
|-------------------------------+----------------------------|
| Activity LED | ACT |
|-------------------------------+----------------------------|
| 100 Mbps LED | 100 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | On | Network connection is good |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | Off | Network connection is |
| | | | broken |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Off | Data is not being |
| | | | transmitted/received |
|-----+--------------+----------+----------------------------|
| 100 | Unidentified | On | Network is operating at |
| | | | 100 Mbps |
|-----+--------------+----------+----------------------------|
| 100 | Unidentified | Off | Network is operating at 10 |
| | | | Mbps |
+------------------------------------------------------------+
