# INTEL CORPORATION
ETHEREXPRESS PRO/100 SERVER ADAPTER
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 100Mbps/10Mbps
Topology Star
Wiring Type RJ-45 Shielded twisted pair
RJ-45 Unshielded twisted pair
Fiber optic via MII transceiver
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

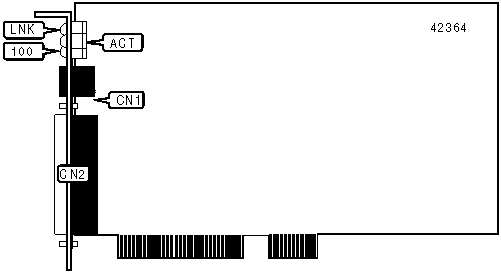

| CONNECTIONS |
|------------------------------------------------------------|
| Function | | Label | |
|--------------------------+-----+---------------------+-----|
| RJ-45 UTP/STP connector | CN1 | MII connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | On | Network connection is good |
|-----+--------------+----------+----------------------------|
| LNK | Unidentified | Off | Network connection is |
| | | | broken |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Blinking | Data is being |
| | | | transmitted/received |
|-----+--------------+----------+----------------------------|
| ACT | Unidentified | Off | Data is not being |
| | | | transmitted/received |
|-----+--------------+----------+----------------------------|
| 100 | Unidentified | On | Network is operating at |
| | | | 100 Mbps |
|-----+--------------+----------+----------------------------|
| 100 | Unidentified | Off | Network is operating at 10 |
| | | | Mbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| LED and port placement may vary due to board |
| revisions. |
+------------------------------------------------------------+
