# LANCAST
6111-01, 6111-03
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory 6KB
Boot ROM Not available
Network Transfer Rate 100Mbps (200Mbps Full Duplex)
Topology Star
Wiring Type Fiber optic cable
Data Bus 32-bit PCI

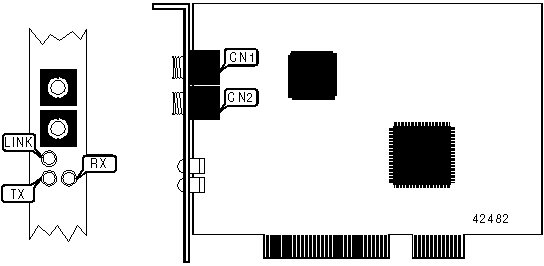

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Fiber optic SC | CN1 | Fiber optic SC | CN2 |
| connector - transmit | | connector - receive | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+--------+----------+--------------------------------|
| TX | Green | Blinking | Data is being transmitted |
|-------+--------+----------+--------------------------------|
| TX | Green | Off | Data is not being transmitted |
|-------+--------+----------+--------------------------------|
| RX | Yellow | Blinking | Data is being received |
|-------+--------+----------+--------------------------------|
| RX | Yellow | Off | Data is not being received |
|-------+--------+----------+--------------------------------|
| LINK | Green | On | Network connection is good |
|-------+--------+----------+--------------------------------|
| LINK | Red | On | Network connection is broken |
|------------------------------------------------------------|
| Note:With both the TX & RX LED’s lit up, the card is |
| either using full-duplex mode or there is a data collision |
| present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NOTE |
|------------------------------------------------------------|
| Note:The 6111-01 model uses a Multi-Mode Duplex |
| connection. The 6111-03 model uses a Single-Mode Duplex |
| connection. |
+------------------------------------------------------------+
