# LANCAST
4320-11
Card Type Transceiver
NIC Type Ethernet
Network Transfer 10Mbps
Rate
Topology Star
Wiring Type Unshielded twisted pair, AUI transceiver via
DB-15 port
Data Bus External

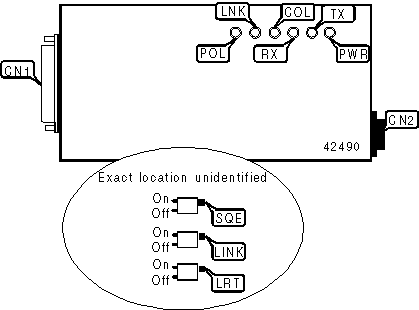

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| RJ-45 UTP connector | CN1 | AUI transceiver via | CN2 |
| | | DB-15 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| í Device operates on 10Base-T | LINK | On |
| compatible hubs | | |
|-----------------------------------------+-------+----------|
| Device does not operate on 10Base-T | LINK | Off |
| compatible hubs | | |
|-----------------------------------------+-------+----------|
| í Low Receipt Threshold set high | LRT | Off |
|-----------------------------------------+-------+----------|
| Low Receipt Threshold set low | LRT | On |
|-----------------------------------------+-------+----------|
| í Signal Quality Error signal disabled | SQE | Off |
|-----------------------------------------+-------+----------|
| Signal Quality Error signal enabled | SQE | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| PWR | Unidentified | On | Power is being received |
| | | | from the DTE device |
|------+--------------+----------+---------------------------|
| PWR | Unidentified | Off | Power is not being |
| | | | received from the DTE |
| | | | device |
|------+--------------+----------+---------------------------|
| TX | Unidentified | Blinking | Data is being transmitted |
|------+--------------+----------+---------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
|------+--------------+----------+---------------------------|
| RX | Unidentified | Blinking | Data is being received |
|------+--------------+----------+---------------------------|
| RX | Unidentified | Off | Data is not being |
| | | | received |
|------+--------------+----------+---------------------------|
| COL | Unidentified | On | Collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| COL | Unidentified | Off | No collision detected on |
| | | | network |
|------+--------------+----------+---------------------------|
| LINK | Unidentified | On | UTP link is good |
|------+--------------+----------+---------------------------|
| LINK | Unidentified | Off | UTP link is broken |
|------+--------------+----------+---------------------------|
| POL | Unidentified | On | Polarity is good |
|------+--------------+----------+---------------------------|
| POL | Unidentified | Off | Polarity is reversed |
+------------------------------------------------------------+
