# INTEL CORPORATION
ETHERNETEXPRES PRO/100+ DUAL PORT SERVER ADAPTER (PILA8472)
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory 6KB cache per port
Boot ROM Not available
Network Transfer Rate 100Mbps/10Mbps
Topology Star
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI

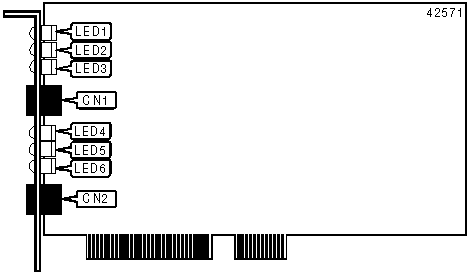

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| Port 1 via RJ-45 UTP | CN1 | Port 2 via RJ-45 | CN2 |
| connector | | UTP connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | On | Port 1 network connection |
| | | | is good |
|------+--------------+----------+---------------------------|
| LED1 | Unidentified | Off | Port 1 network connection |
| | | | is not good |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Blinking | Data is being received on |
| | | | port 1 |
|------+--------------+----------+---------------------------|
| LED2 | Unidentified | Off | Data is not being |
| | | | received on port 1 |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | On | Port 1 is operating at |
| | | | 100 Mbps |
|------+--------------+----------+---------------------------|
| LED3 | Unidentified | Off | Port 1 is operating at 10 |
| | | | Mbps |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | On | Port 2 network connection |
| | | | is good |
|------+--------------+----------+---------------------------|
| LED4 | Unidentified | Off | Port 2 network connection |
| | | | is not good |
|------+--------------+----------+---------------------------|
| LED5 | Unidentified | Blinking | Data is being received on |
| | | | port 2 |
|------+--------------+----------+---------------------------|
| LED5 | Unidentified | Off | Data is not being |
| | | | received on port 2 |
|------+--------------+----------+---------------------------|
| LED6 | Unidentified | On | Port 2 is operating at |
| | | | 100 Mbps |
|------+--------------+----------+---------------------------|
| LED6 | Unidentified | Off | Port 2 is operating at 10 |
| | | | Mbps |
+------------------------------------------------------------+
