# MILAN TECHNOLOGY CORPORATION
MIL-2000C
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear bus
Wiring Type RG-58A/U 50ohm coaxial
AUI transceiver via DB-15 port
Boot ROM Available

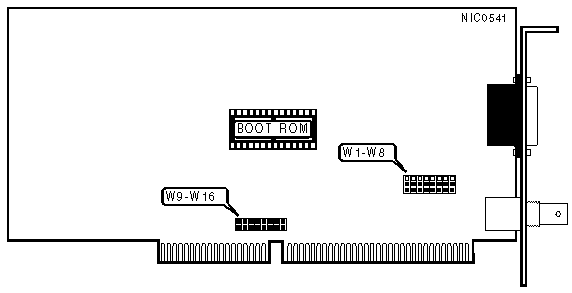

IMG IMG 1
+------------------------------------------------------------+
| CABLE TYPE |
|------------------------------------------------------------|
| Type | W1 - W8 |
|------------------------------------+-----------------------|
| » | RG-58A/U 50ohm coaxial | Pins 2 & 3 closed |
|---+--------------------------------+-----------------------|
| | AUI transceiver via DB-15 port | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS |
|------------------------------------------------------------|
| Address | W9 | W10 |
|-----------------------+------------------+-----------------|
| » | 300h | On | On |
|---+-------------------+------------------+-----------------|
| | 320h | Off | On |
|---+-------------------+------------------+-----------------|
| | 340h | On | Off |
|---+-------------------+------------------+-----------------|
| | 360h | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BOOT ROM |
|------------------------------------------------------------|
| Setting | W11 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| | Enabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT REQUEST |
|------------------------------------------------------------|
| IRQ | W12 | W13 | W14 | W15 |
|------------+-----------+-----------+-----------+-----------|
| | 2/9 | Closed | Open | Open | Open |
|---+--------+-----------+-----------+-----------+-----------|
| » | 3 | Open | Closed | Open | Open |
|---+--------+-----------+-----------+-----------+-----------|
| | 4 | Open | Open | Closed | Open |
|---+--------+-----------+-----------+-----------+-----------|
| | 5 | Open | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMPATIBILITY MODE |
|------------------------------------------------------------|
| Setting | W16 |
|---------------------------------------+--------------------|
| » | Disabled | Closed |
|---------------+-----------------------+--------------------|
| | Enabled | Open |
|------------------------------------------------------------|
| Note:If the host system is a Compaq 286, IBM PC 30-286, or |
| any PC with a Chips and Technologies chipset, |
| compatibility mode must be enabled (W16 - open). |
+------------------------------------------------------------+
