# MADGE NETWORKS, LTD.
STRAIGHT BLUE 16/4 MC
NIC Type Token Ring
Transfer Rate 4/16Mbps
Data Bus 16-bit MCA
Topology Token ring
Wiring Type Unshielded twisted pair
Shielded twisted pair via DB9
Boot ROM Available (in firmware)
IMG IMG 1
+------------------------------------------------------------+

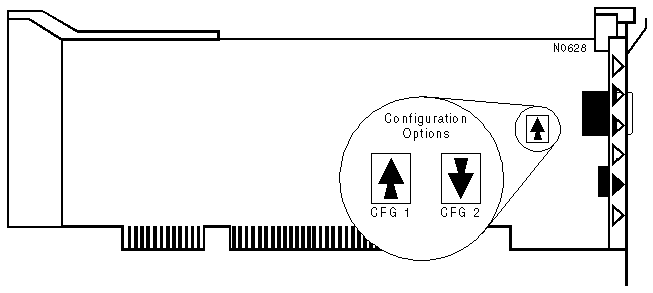

| CABLING TYPE |
|------------------------------------------------------------|
| Type | Configuration |
|-------------------------------+----------------------------|
| Shielded twisted pair | CFG 1 |
|-------------------------------+----------------------------|
| Unshielded twisted pair | CFG 2 |
+------------------------------------------------------------+
