       # MADGE NETWORKS, LTD.

          SMART 100 EISA RINGNODE FOR COPPER CABLING

          NIC Type         FDDI
          Transfer Rate    100Mbps
          Data Bus         32-bit EISA
          Topology         Ring
          Wiring Type      Shielded twisted pair

                           Unshielded twisted pair
          Boot ROM         Not available

   IMG IMG 1


   IMG IMG 2


          +------------------------------------------------------------+

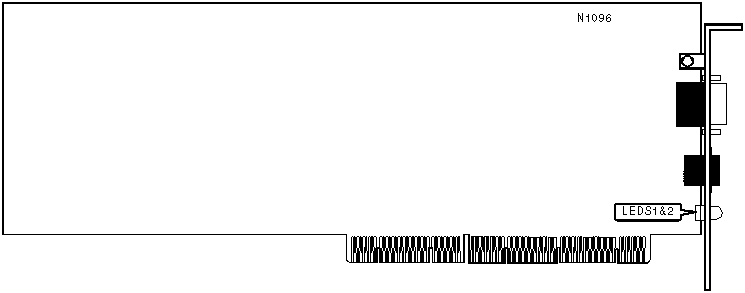

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   |  Color   | Status  |          Condition           |
          |--------+----------+---------+------------------------------|
          |  LED1  |  Yellow  |   On    |  Network connection is good  |
          |--------+----------+---------+------------------------------|
          |  LED1  |  Yellow  |   Off   | Network connection is broken |
          |--------+----------+---------+------------------------------|
          |  LED2  |  Green   |   On    |   Cable connection is good   |
          |--------+----------+---------+------------------------------|
          |  LED2  |  Green   |   Off   |  Cable connection is broken  |
          +------------------------------------------------------------+
