# Megahertz corporation
Pcmcia ethernet adapter (UTP)
Card Type Network Interface Card
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
Data Bus PCMCIA Type II, PCMCIA Type III

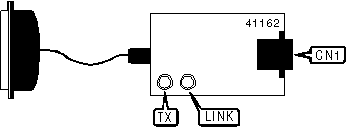

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------------+----------+---------------------------|
| LINK | Unidentified | On | UTP link is good |
|------+--------------+----------+---------------------------|
| LINK | Unidentified | Off | UTP link is broken |
|------+--------------+----------+---------------------------|
| TX | Unidentified | Blinking | Data is being transmitted |
|------+--------------+----------+---------------------------|
| TX | Unidentified | Off | Data is not being |
| | | | transmitted |
+------------------------------------------------------------+
