# MAGICRAM, INC.
ETHERNET PCMCIA CARD (RJ-45 & BNC)
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus PCMCIA
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
RJ58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

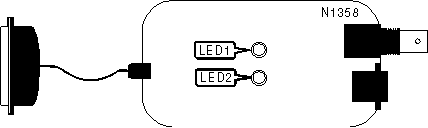

| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | Data is not being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | Network connection is good |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Network connection is broken |
+------------------------------------------------------------+
