# NDC COMMUNICATIONS, INC.
ND5210
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus
Wiring Type RG-58A/U 50ohm coaxial
Boot ROM Not available

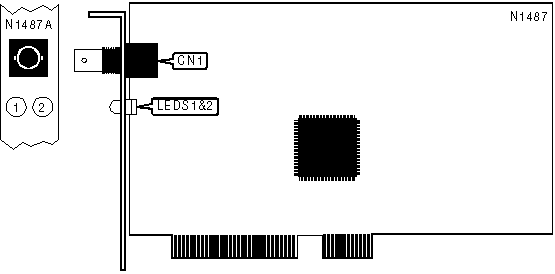

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RG-58A/U 50ohm coaxial port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Red | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED1 | Red | Off | Data is not being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | Power is on |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Power is off |
+------------------------------------------------------------+
