# NDC COMMUNICATIONS, INC.
PCI ETHERNET ADAPTER (UTP & BNC)
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

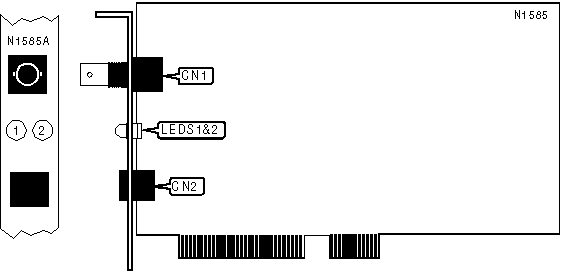

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| RG-58A/U 50ohm | CN1 | Unshielded twisted pair | CN2 |
| coaxial port | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+----------+------------------------------|
| LED1 | Red | Blinking | Data is being |
| | | | transmitted/received |
|--------+---------+----------+------------------------------|
| LED1 | Red | Off | Data is not being |
| | | | transmitted/received |
|--------+---------+----------+------------------------------|
| LED2 | Green | On | 10Base-T network connection |
| | | | is good |
|--------+---------+----------+------------------------------|
| LED2 | Green | Off | 10base-T network connection |
| | | | is broken |
|------------------------------------------------------------|
| Note: When using coaxial cable, LED2 is always on and has |
| no function. |
+------------------------------------------------------------+
