# MULTI-TECH SYSTEMS, INC.
EN301CT16C (REV.F)
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available
IMG IMG 1
+------------------------------------------------------------+

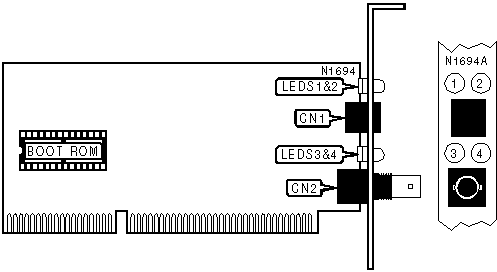

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN2 |
| port | | coaxial port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+----------+----------------------------------------|
| LED1 | On | 10Base-T network connection is good |
|--------+----------+----------------------------------------|
| LED1 | Off | 10Base-T network connection is broken |
|--------+----------+----------------------------------------|
| LED2 | On | Data is being received |
|--------+----------+----------------------------------------|
| LED2 | Off | Data is not being received |
|--------+----------+----------------------------------------|
| LED3 | On | Polarity is reversed on 10Base-T |
|--------+----------+----------------------------------------|
| LED3 | Off | Polarity is correct on 10Base-T |
|--------+----------+----------------------------------------|
| LED4 | On | Data is being transmitted |
|--------+----------+----------------------------------------|
| LED4 | Off | Data is not being transmitted |
+------------------------------------------------------------+
