# MOTOROLA, INC.
6520/6560 MPROUTER TRLAN CARD
NIC Type Token Ring
Data Bus 16-bit ISA
Network Transfer Rate 16Mbps/4Mbps
Topology Ring
Wiring Type Shielded twisted pair
Unshielded twisted pair
Boot ROM Not available

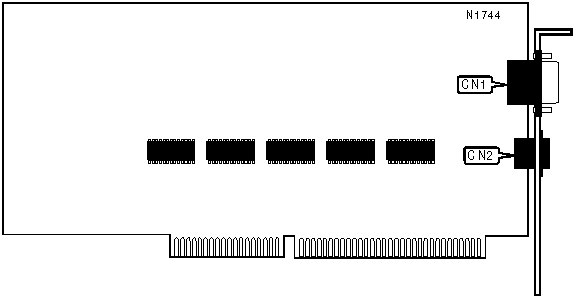

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------+-------+-------------------------+-------|
| Shielded twisted | CN1 | Unshielded twisted pair | CN2 |
| pair | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| This card is designed for use in Motorola’s 6520/6560 |
| MPRouter system and will not function in another system. |
| See documents M3596 and M3597 for more information. |
+------------------------------------------------------------+
