# MATROX GRAPHICS, INC.
SHARK NS-100/4/C
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 10/100Mbps
Topology Star
Wiring Type RJ-45 Unshielded twisted pair
Data Bus 32-bit PCI

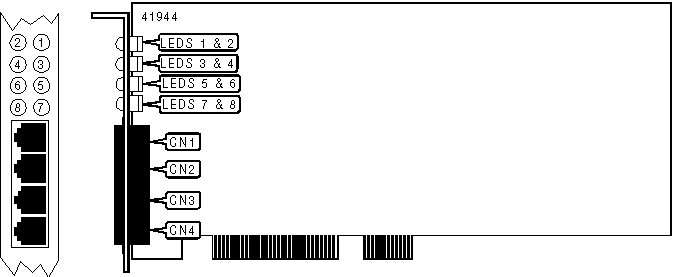

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| RJ-45 UTP connector | CN1 | RJ-45 UTP connector | CN3 |
| port 1 | | port 3 | |
|----------------------+-------+---------------------+-------|
| RJ-45 UTP connector | CN2 | RJ-45 UTP connector | CN4 |
| port 2 | | port 4 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Port | Condition |
|------+-------+----------+------+---------------------------|
| LED1 | Red | On | 1 | Collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED1 | Red | Off | 1 | No collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED2 | Green | On | 1 | UTP link is good |
|------+-------+----------+------+---------------------------|
| LED2 | Green | Off | 1 | UTP link is broken |
|------+-------+----------+------+---------------------------|
| LED2 | Green | Blinking | 1 | Data is being |
| | | | | transmitted/received |
|------+-------+----------+------+---------------------------|
| LED3 | Red | On | 2 | Collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED3 | Red | Off | 2 | No collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED4 | Green | On | 2 | UTP link is good |
|------+-------+----------+------+---------------------------|
| LED4 | Green | Off | 2 | UTP link is broken |
|------+-------+----------+------+---------------------------|
| LED4 | Green | Blinking | 2 | Data is being |
| | | | | transmitted/received |
|------+-------+----------+------+---------------------------|
| LED5 | Red | On | 3 | Collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED5 | Red | Off | 3 | No collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED6 | Green | On | 3 | UTP link is good |
|------+-------+----------+------+---------------------------|
| LED6 | Green | Off | 3 | UTP link is broken |
|------+-------+----------+------+---------------------------|
| LED6 | Green | Blinking | 3 | Data is being |
| | | | | transmitted/received |
|------+-------+----------+------+---------------------------|
| LED7 | Red | On | 4 | Collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED7 | Red | Off | 4 | No collision detected on |
| | | | | network |
|------+-------+----------+------+---------------------------|
| LED8 | Green | On | 4 | UTP link is good |
|------+-------+----------+------+---------------------------|
| LED8 | Green | Off | 4 | UTP link is broken |
|------+-------+----------+------+---------------------------|
| LED8 | Green | Blinking | 4 | Data is being |
| | | | | transmitted/received |
+------------------------------------------------------------+
