# OLICOM, INC.
OC-2183
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory 4Kb
Boot ROM Available
Network Transfer Rate 10/100Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

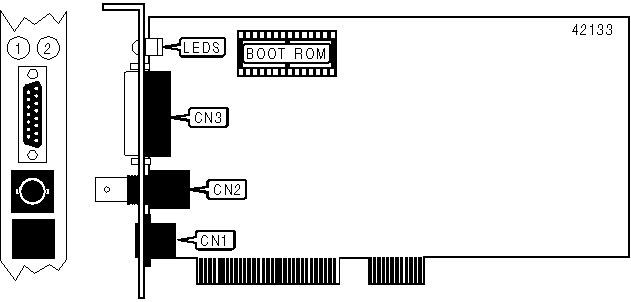

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+--------+----------------+--------|
| UTP via RJ-45 connector | CN1 | AUI connector | CN3 |
|-------------------------+--------+----------------+--------|
| BNC connector | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | Data is being received |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Off | Data is not being received |
|------+--------+--------+-----------------------------------|
| LED2 | Lt | On | Data is being |
| | Green | | transmitted/received at 100Mbps |
|------+--------+--------+-----------------------------------|
| LED2 | Lt | Off | Data is being |
| | Green | | transmitted/received at 10Mbps |
+------------------------------------------------------------+
