# OLICOM, INC.
OC-3137
Card Type Network Interface Card
NIC Type Token Ring
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 4/16Mbps
Topology Star, Ring
Wiring Type Shielded twisted pair
Unshielded twisted pair
Data Bus 32-bit PCI

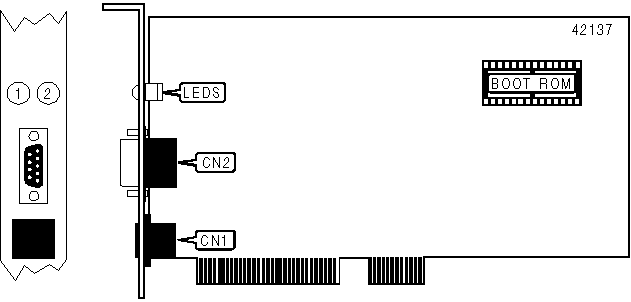

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| UTP via RJ-45 | CN1 | STP via 9-pin | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Network connection is broken |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | On | Data is being |
| | | | transmitted/received at 4Mbps |
|------+--------+--------+-----------------------------------|
| LED2 | Yellow | Off | Data is being |
| | | | transmitted/received at 16Mbps |
+------------------------------------------------------------+
