# MADGE NETWORKS, LTD.
COLLAGE 155 EISA (VER. 1)
Card Type Network Interface Card
NIC Type ATM
Maximum Onboard Memory 256KB
Boot ROM Unidentified
Network Transfer Rate 155Mbps
Topology Star
Wiring Type Fiber optic cable
Data Bus 32-bit EISA
IMG IMG 1
+------------------------------------------------------------+

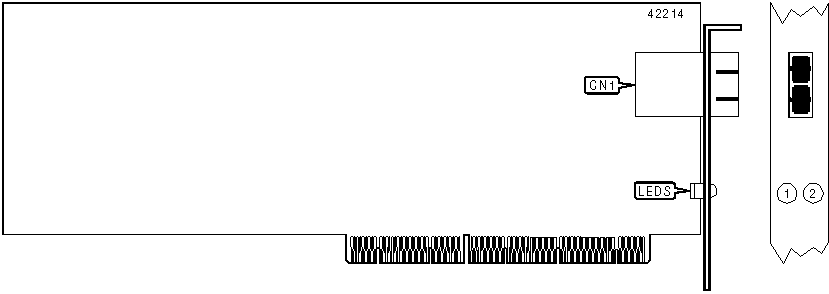

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Fiber optic connector (SC) | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Diagnostic failure |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Fiber optic link is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Fiber optic link is broken |
+------------------------------------------------------------+
