# MADGE NETWORKS, LTD.
COLLAGE 155 PCI (VER. 2)
Card Type Network Interface Card
NIC Type ATM
Maximum Onboard Memory Unidentified
Boot ROM Unidentified
Network Transfer Rate 155Mbps
Topology Star
Wiring Type Fiber optic cable
Data Bus 32-bit PCI

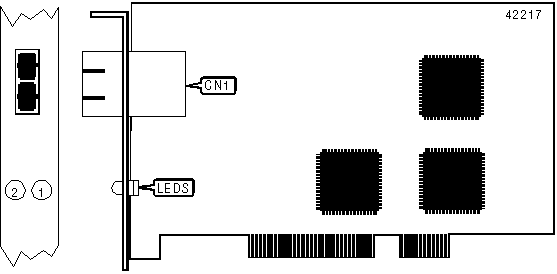

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Fiber optic connector (SC) | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | On | Network connection is good |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Diagnostic failure |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Fiber optic link is good |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Fiber optic link is broken |
+------------------------------------------------------------+
