# MACSENSE CONNECTIVITY, INC.
E450 (VER. 1)
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Star, Linear Bus
Wiring Type Shielded twisted pair
Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus Mac PCI

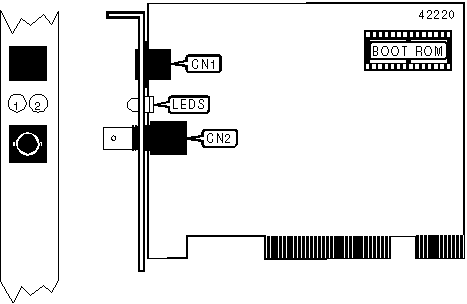

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| UTP/STP via RJ-45 | CN1 | RG-58A/U connector | CN2 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | On | UTP/STP link is good |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | UTP/STP link is broken |
|------+-------+----------+----------------------------------|
| LED2 | Green | Blinking | Data is being |
| | | | transmitted/received |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | Data is not being |
| | | | transmitted/received |
+------------------------------------------------------------+
