# MACSENSE CONNECTIVITY, INC.
E440
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory 64KB
Boot ROM Available
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Data Bus NuBus
IMG IMG 1
+------------------------------------------------------------+

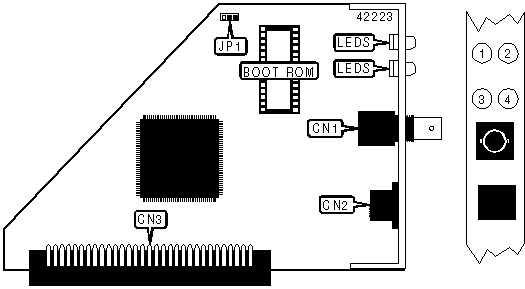

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+--------+-----------------+-------|
| RG-58A/U connector | CN1 | NuBus interface | CN3 |
|-------------------------+--------+-----------------+-------|
| UTP via RJ-45 connector | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CABLE TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP1 |
|----------------------------+-------------------------------|
| 10Base2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 10BaseT | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | Data is being transmitted |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | Data is not being transmitted |
|------+--------+----------+---------------------------------|
| LED2 | Green | On | Power on |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | Power off |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Blinking | Data is being received |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Off | Data is not being received |
|------+--------+----------+---------------------------------|
| LED4 | Green | On | UTP link is good |
|------+--------+----------+---------------------------------|
| LED4 | Green | Off | UTP link is broken |
+------------------------------------------------------------+
