# MACROMATE CORPORATION
MT-950T
Card Type Ethernet Transceiver
NIC Type Ethernet
Network Transfer Rate 10Mbps
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
Data Bus External

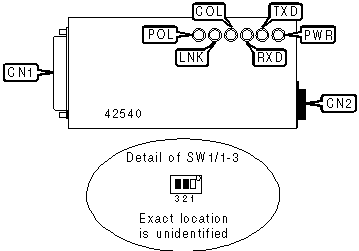

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| AUI transceiver via | CN1 | RJ-45 UTP connector | CN2 |
| DB-15 | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| í Signal Quality Error function | SW1/1 | Off |
| disabled | | |
|-----------------------------------------+-------+----------|
| Signal Quality Error function enabled | SW1/1 | On |
|-----------------------------------------+-------+----------|
| í 10BASE-T compatibility enabled | SW1/2 | On |
|-----------------------------------------+-------+----------|
| 10BASE-T compatibility disabled | SW1/2 | Off |
|-----------------------------------------+-------+----------|
| í Maintain the standard 100 meter cable | SW1/3 | Off |
| length | | |
|-----------------------------------------+-------+----------|
| Extend from the standard 100 meter | SW1/3 | On |
| cable length | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-----+-------+----------+-----------------------------------|
| PWR | Green | On | Power being received from AUI |
| | | | connector |
|-----+-------+----------+-----------------------------------|
| PWR | Green | Off | Power not being received |
|-----+-------+----------+-----------------------------------|
| TXD | Green | Blinking | Data is being transmitted |
|-----+-------+----------+-----------------------------------|
| TXD | Green | Off | Data is not being transmitted |
|-----+-------+----------+-----------------------------------|
| RXD | Green | Blinking | Data is being received |
|-----+-------+----------+-----------------------------------|
| RXD | Green | Off | Data is not being received |
|-----+-------+----------+-----------------------------------|
| COL | Amber | On | Collision detected on network |
|-----+-------+----------+-----------------------------------|
| COL | Amber | Off | No collision detected on network |
|-----+-------+----------+-----------------------------------|
| LNK | Green | On | A valid connection to the fiber |
| | | | optic connector - RX detected |
|-----+-------+----------+-----------------------------------|
| LNK | Green | Off | No valid connection to the fiber |
| | | | optic connector - RX detected |
|-----+-------+----------+-----------------------------------|
| POL | Green | On | Polarity normal |
|-----+-------+----------+-----------------------------------|
| POL | Green | Off | Polarity reversed |
+------------------------------------------------------------+
