# OLICOM, INC.
RAPIDFIRE 3530
Card Type Network Interface Card
NIC Type Token Ring
Maximum Onboard Memory 4KB
Boot ROM Not available
Network Transfer Rate 100Mbps
Topology Ring
Wiring Type Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

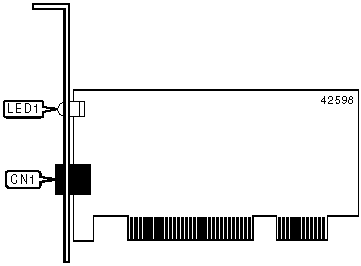

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| RJ-45 UTP connector | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Green | On | Network connection is good |
|------+--------+--------+-----------------------------------|
| LED1 | Green | Off | Network connection is not good |
+------------------------------------------------------------+
