# PURE DATA LTD.
PDT8023
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus Toshiba laptop internal expansion slot
Topology Linear Bus
Wiring Type RG-62A/U 93ohm coaxial
Boot ROM Not Available

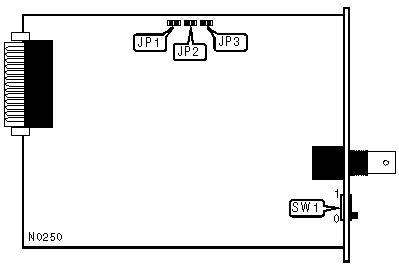

IMG IMG 1
+------------------------------------------------------------+
| STANDBY MODE |
|------------------------------------------------------------|
| Mode | SW1 |
|-----------------------------------+------------------------|
| ยป | Normal | Position 1 |
|---+-------------------------------+------------------------|
| | Standby (low power) | Position 0 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O BASE ADDRESS AND INTERRUPT REQUEST |
|------------------------------------------------------------|
| Address | IRQ | JP1 | JP2 | JP3 |
|------------+---------+------------+------------+-----------|
| 280h | 2 | Closed | Closed | Open |
|------------+---------+------------+------------+-----------|
| 300h | 2 | Open | Closed | Open |
|------------+---------+------------+------------+-----------|
| 280h | 3 | Closed | Open | Closed |
|------------+---------+------------+------------+-----------|
| 300h | 3 | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS NOTES |
|------------------------------------------------------------|
| Software that is supplied with the card must be run in |
| order to fully configure it. |
+------------------------------------------------------------+
