# PURE DATA, LTD.
PDI8023-16T
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available

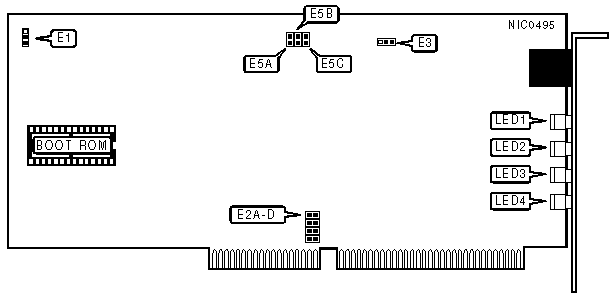

IMG IMG 1
+------------------------------------------------------------+
| SOFTWARE CONFIGURATION RESET |
|------------------------------------------------------------|
| Setting | E1 |
|---------------------------------+--------------------------|
| » | Normal operation | Pins 2 & 3 closed |
|--------+------------------------+--------------------------|
| | Reset | Pins 1 & 2 closed |
|------------------------------------------------------------|
| Note:Many of the options are configured using the setup |
| utility provided with the card. To reset those |
| configurations to the factory defaults, move E1 to the |
| Reset position (pins 1 & 2 closed) and apply power for a |
| few seconds. Always make sure that you turn off the power |
| to the computer before you change any jumpers. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CARD I/D NUMBER |
|------------------------------------------------------------|
| Number | E2A | E2B | E2C | E2D |
|-------------+------------+-----------+----------+----------|
| » | 1 | Open | Open | Open | Closed |
|------+------+------------+-----------+----------+----------|
| | 2 | Open | Open | Closed | Open |
|------+------+------------+-----------+----------+----------|
| | 3 | Open | Closed | Open | Open |
|------+------+------------+-----------+----------+----------|
| | 4 | Closed | Open | Open | Open |
|------------------------------------------------------------|
| Note:Up to four cards can be installed into a system at |
| the same time. If more than one card is installed each |
| one must have a seperate card I/D number. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINK INTEGRITY TEST |
|------------------------------------------------------------|
| Setting | E3 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Jumper | Setting |
|------------------------------+-----------------------------|
| E5A | Open |
|------------------------------+-----------------------------|
| E5B | Open |
|------------------------------+-----------------------------|
| E5C | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|--------+---------+----------+------------------------------|
| LED1 | Red | On | Card is being accessed by |
| | | | host computer |
|--------+---------+----------+------------------------------|
| LED1 | Red | Off | Card is not being accessed |
| | | | by host computer |
|--------+---------+----------+------------------------------|
| LED2 | Green | On | Data is being transmitted or |
| | | | received |
|--------+---------+----------+------------------------------|
| LED2 | Green | Off | Data is not being |
| | | | transmitted or received |
|--------+---------+----------+------------------------------|
| LED3 | Red | On | Receive wires are reversed |
| | | | and corrected for |
|--------+---------+----------+------------------------------|
| LED3 | Red | Off | Normal operation |
|--------+---------+----------+------------------------------|
| LED4 | Green | On | Network connection is good |
|--------+---------+----------+------------------------------|
| LED4 | Green | Off | Network connection is broken |
|------------------------------------------------------------|
| Note:If LED3 is lit the receive wires are reversed. The |
| card will automatically correct for this but the wires |
| should be repaired as soon as possible. |
+------------------------------------------------------------+
