       # PURE DATA, LTD.

          PDMCIA9023-T

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         PCMCIA, Type II
          Topology         Star
          Wiring Type      Unshielded twisted pair
          Boot ROM         Not available

   IMG IMG 1


          +------------------------------------------------------------+

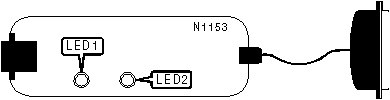

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |    LED     |   Status    |            Condition            |
          |------------+-------------+---------------------------------|
          |    LED1    |     On      |   Network traffic is detected   |
          |------------+-------------+---------------------------------|
          |    LED1    |     Off     | Network traffic is not detected |
          |------------+-------------+---------------------------------|
          |    LED2    |     On      |   Network connection is good    |
          |------------+-------------+---------------------------------|
          |    LED2    |     Off     |  Network connection is broken   |
          +------------------------------------------------------------+
