       # RACAL INTERLAN, INC.

          INTERLAN PCI TPO (REV.AA)

          NIC Type         Ethernet
          Transfer Rate    10Mbps
          Data Bus         PCI
          Topology         Linear Bus/Star
          Wiring Type      Unshielded twisted pair
          Boot ROM         Not available

   IMG IMG 1


          +------------------------------------------------------------+

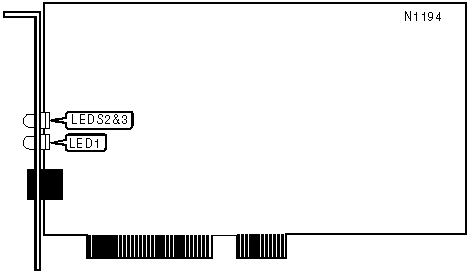

          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          |  LED   |  Color  | Status  |           Condition           |
          |--------+---------+---------+-------------------------------|
          |  LED1  |  Green  |   On    |  Network connection is good   |
          |--------+---------+---------+-------------------------------|
          |  LED1  |  Green  |   Off   | Network connection is broken  |
          |--------+---------+---------+-------------------------------|
          |  LED2  | Yellow  |   On    |    Data is being received     |
          |--------+---------+---------+-------------------------------|
          |  LED2  | Yellow  |   Off   |  Data is not being received   |
          |--------+---------+---------+-------------------------------|
          |  LED3  | Yellow  |   On    |   Data is being transmitted   |
          |--------+---------+---------+-------------------------------|
          |  LED3  | Yellow  |   Off   | Data is not being transmitted |
          +------------------------------------------------------------+
