# PURE DATA, LTD.
PDI8023PLUSII-16CT
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Linear/Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available

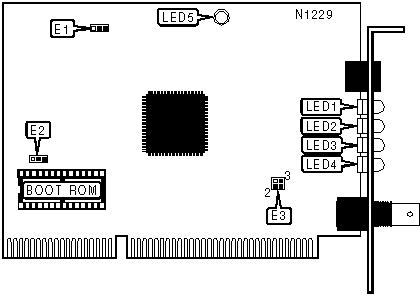

IMG IMG 1
+------------------------------------------------------------+
| BOOT ROM CONFIGURATION |
|------------------------------------------------------------|
| Setting | E1 |
|----------------------------+-------------------------------|
| Enabled | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| Disabled | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM SIZE SELECTION |
|------------------------------------------------------------|
| Size | E2 |
|----------------------------+-------------------------------|
| 64KB | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 128KB | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 256KB | pins 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| NETWORK DISTANCE CONFIGURATION |
|------------------------------------------------------------|
| Distance | E3 |
|-------------------------------+----------------------------|
| =< 185 meters | pins 1 & 2 closed |
|-------------------------------+----------------------------|
| > 185, =<300 meters | pins 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Red | On | Card activity detected |
|------+-------+--------+------------------------------------|
| LED1 | Red | Off | Card activity not detected |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Network activity detected |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Network activity not detected |
|------+-------+--------+------------------------------------|
| LED3 | Red | On | 10Base-T polarity is reversed |
|------+-------+--------+------------------------------------|
| LED3 | Red | Off | 10Base-T polarity is normal |
|------+-------+--------+------------------------------------|
| LED4 | Green | On | 10Base-T network connection is |
| | | | good |
|------+-------+--------+------------------------------------|
| LED4 | Green | Off | 10Base-T network connection is |
| | | | broken |
|------+-------+--------+------------------------------------|
| LED5 | Red | On | Network collision detected |
|------+-------+--------+------------------------------------|
| LED5 | Red | Off | Network collision not detected |
+------------------------------------------------------------+
