# PROTEON, INC.
PRONET/E MODEL P1970-JA
Card Type Ethernet
Data Bus 32-bit EISA
Maximum Network Rate 10Mbps
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Boot ROM Available
IMG IMG 1
+------------------------------------------------------------+

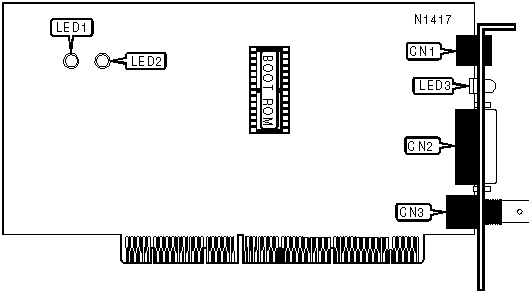

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------------+-------+----------------+-------|
| Unshielded twisted pair | CN1 | RG-58A/U 50ohm | CN3 |
| | | coaxial port | |
|---------------------------+-------+----------------+-------|
| AUI transceiver via DB-15 | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Green | On | Data is being received |
|------+-------+--------+------------------------------------|
| LED1 | Green | Off | Data is not being received |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Data is being transmitted |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Data is not being transmitted |
|------+-------+--------+------------------------------------|
| LED3 | Green | On | 10Base-T network connection is |
| | | | good |
|------+-------+--------+------------------------------------|
| LED3 | Green | Off | 10Base-T network connection is |
| | | | broken |
+------------------------------------------------------------+
