# RPTI INTERNATIONAL LTD.
TURBO PCI
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus 32-bit PCI
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Available (location unidentified)
IMG IMG 1
+------------------------------------------------------------+

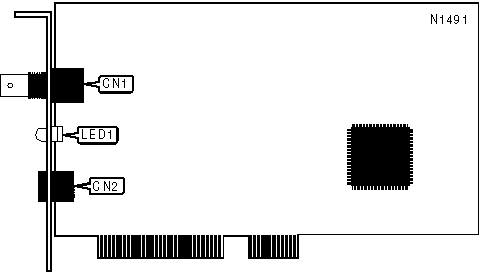

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------+-------+---------------------------+-------|
| RG-58A/U 50ohm | CN1 | Unshielded twisted pair | CN2 |
| coaxial port | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|--------+---------+-----------------------------------------|
| LED1 | On | 10Base-T network connection is good |
|--------+---------+-----------------------------------------|
| LED1 | Off | 10Base-T network connection is broken |
+------------------------------------------------------------+
