# PIICEON, INC
ETHERNET PC CARD
NIC Type Ethernet
Network Transfer Rate 10Mbps
Data Bus PCMCIA Type III
Topology Linear Bus, Star
Wiring Type Unshielded twisted pair
RG-58A/U 50ohm coaxial
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

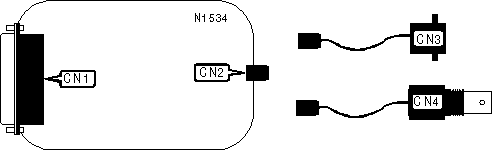

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Card connector | CN1 | Unshielded twisted | CN3 |
| | | pair | |
|-----------------------+-------+--------------------+-------|
| Network interface | CN2 | RG-58A/U 50ohm | CN4 |
| connector | | coaxial | |
+------------------------------------------------------------+
