# RNS
2300-TX
NIC Type Ethernet
Network Transfer Rate 10/100Mbps
Data Bus 32-bit PCI
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available

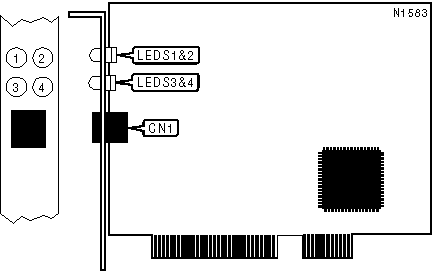

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| Unshielded twisted pair port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Blinking | 10Base-T data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED1 | Yellow | Off | 10Base-T data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Green | Blinking | 100Base-TX data is being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED2 | Green | Off | 100Base-TX data is not being |
| | | | transmitted/received |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | On | 10Base-T network connection is |
| | | | good |
|------+--------+----------+---------------------------------|
| LED3 | Yellow | Off | 10Base-T network connection is |
| | | | broken |
|------+--------+----------+---------------------------------|
| LED4 | Green | On | 100Base-TX network connection |
| | | | is good |
|------+--------+----------+---------------------------------|
| LED4 | Green | Off | 100Bsae-TX network connection |
| | | | is broken |
+------------------------------------------------------------+
