# RNS
2200-CD
Card Type FDDI
Chip Set Motorola
Data Bus 32-bit PCI
Maximum Network Rate 100Mbps
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Not available
IMG IMG 1
+------------------------------------------------------------+

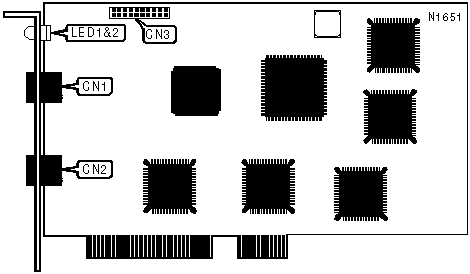

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------------+-------+--------------+-------|
| Unshielded twisted pair - | CN1 | Unidentified | CN3 |
| secondary ring | | | |
|-----------------------------+-------+--------------+-------|
| Unshielded twisted pair - | CN1 | | |
| primary ring | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+---------+---------+--------------------------------|
| LED1 | Yellow | On | Network connection is good |
|-------+---------+---------+--------------------------------|
| LED1 | Yellow | Off | Network connection is broken |
|-------+---------+---------+--------------------------------|
| LED2 | Green | On | Secondary ring is functioning |
|-------+---------+---------+--------------------------------|
| LED2 | Green | Off | Primary ring is functioning |
|------------------------------------------------------------|
| Note: The exact location of individual LEDs is |
| unidentified. |
+------------------------------------------------------------+
