# PENRIL DATABILITY NETWORKS
VISTA VCP-1000
Card Type Ethernet router
Chip Set Unidentified
I/O Options NIC module, line interface module (4)

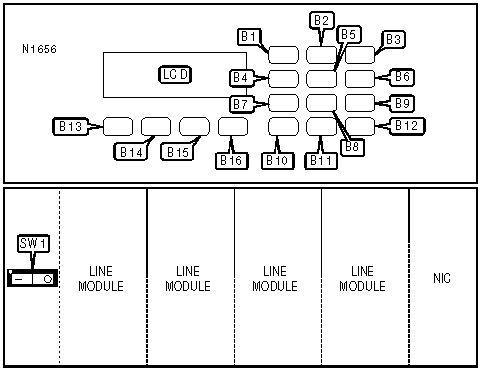

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 1, A, B, and C | B1 | ENTER button | B10 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 2, D, E, and F | B2 | 0, dash, comma, and | B11 |
| button | | underscore button | |
|---------------------+-------+----------------------+-------|
| 3, G, H, and I | B3 | DELETE button | B12 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 4, J, K, and L | B4 | LEFT button | B13 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 5, M, N, and O | B5 | UP button | B14 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 6, P, Q, and R | B6 | DOWN button | B15 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 7, S, T, and U | B7 | RIGHT button | B16 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 8, V, W, and X | B8 | Power switch | SW1 |
| button | | | |
|---------------------+-------+----------------------+-------|
| 9, Y, Z, and period | B9 | | |
| button | | | |
+------------------------------------------------------------+
NIC Type Ethernet
Processor 80186
Processor Speed 20MHz
Chip Set Intel 82856
Maximum Onboard Memory 2MB DRAM/128K static RAM
I/O Options PCMCIA Type I slot
Maximum network Rate 10Mbps
Data Bus Proprietary
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | J1 | AUI transceiver via | J3 |
| pair | | DB-15 port | |
|--------------------+-------+-----------------------+-------|
| RG-58A/U 50ohm | J2 | PCMCIA Type I slot | J4 |
| coaxial | | for memory card | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Green | On | 10Base-T network connection is |
| | | | good |
|------+-------+----------+----------------------------------|
| LED1 | Green | Off | 10Base-T network connection is |
| | | | broken |
|------+-------+----------+----------------------------------|
| LED2 | Green | Blinking | Network activity detected |
|------+-------+----------+----------------------------------|
| LED2 | Red | On | Coaxial network connection is |
| | | | broken |
|------+-------+----------+----------------------------------|
| LED2 | Red | Blinking | Network collisions detected |
|------+-------+----------+----------------------------------|
| LED2 | N/A | Off | Network activity not detected |
+------------------------------------------------------------+
NIC Type Ethernet
Processor 80186
Processor Speed 10MHz
Chip Set Intel 82586
Maximum Onboard Memory 512KB DRAM/64K NVRAM/64KB static RAM
Maximum network Rate 10Mbps
Data Bus Proprietary
Topology Linear Bus/Star
Wiring Type Unshielded twisted pair
AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
IMG IMG 3
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Unshielded twisted | J1 | AUI transceiver via | J3 |
| pair | | DB-15 port | |
|--------------------+-------+-----------------------+-------|
| RG-58A/U 50ohm | J2 | | |
| coaxial | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+----------+----------------------------------|
| LED1 | Red | Blinking | Network activity detected |
|------+-------+----------+----------------------------------|
| LED1 | Red | Off | Network activity not detected |
|------+-------+----------+----------------------------------|
| LED2 | Green | On | 10Base-T network connection is |
| | | | good |
|------+-------+----------+----------------------------------|
| LED2 | Green | Off | 10Base-T network connection is |
| | | | broken |
+------------------------------------------------------------+
Card Type Serial
Processor Unidentified
Processor Speed Unidentified
Chip Set Unidentified
Maximum Onboard Memory Unidentified
I/O Options Serial ports (8)
Data Bus Proprietary

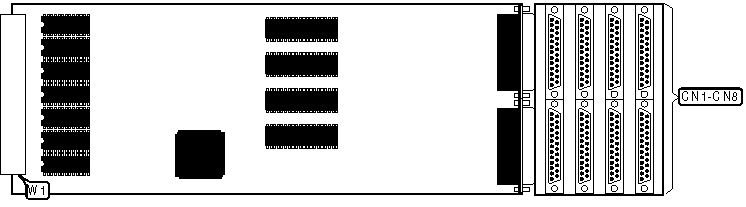

IMG IMG 4
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+---------+---------------------+-------|
| Serial ports 1 - 8 | CN1-CN8 | Connector for | W1 |
| | | VCP-1000 | |
+------------------------------------------------------------+
Card Type Serial
Processor Unidentified
Processor Speed Unidentified
Chip Set Unidentified
Maximum Onboard Memory Unidentified
I/O Options Serial ports (32)
Data Bus Proprietary

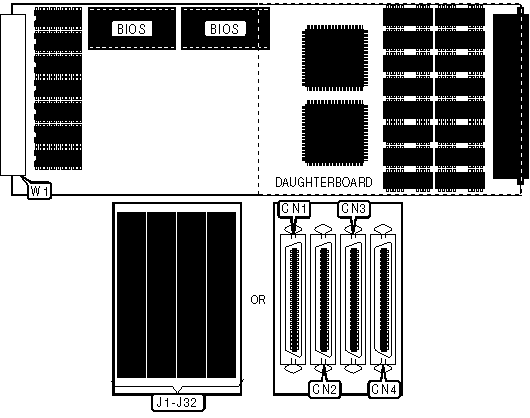

IMG IMG 5
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-----------+------------------+--------|
| Serial ports 1 - | CN1-CN4 | Connector for | W1 |
| 32 | | VCP-1000 | |
|--------------------+-----------+------------------+--------|
| Serial ports 1 - | J1-J32 | | |
| 32 | | | |
|------------------------------------------------------------|
| Note:The backplane of this card will have either |
| J1-J32 installed or CN1-CN4 installed, but not both. |
+------------------------------------------------------------+
