# PROXIM, INC.
RANGELAN2 7400
Card Type Network Interface Card
NIC Type Ethernet
Maximum Onboard Memory Unidentified
Boot ROM Not available
Network Transfer Rate 1.6Mbps
Topology Peer - Peer, Star, Linear Bus
Wiring Type Wireless
Data Bus PCMCIA Type II

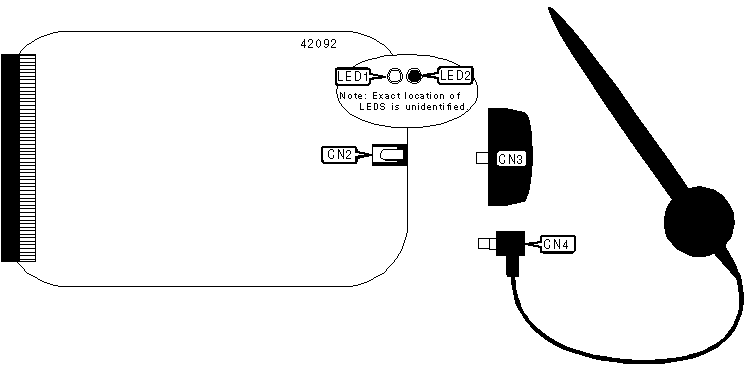

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------+-------+-----------------------+-------|
| Antenna receptacle | CN2 | Tethered dipole | CN4 |
| | | antenna | |
|--------------------+-------+-----------------------+-------|
| Snap-on antenna | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | On | Data is being transmitted |
|------+--------+--------+-----------------------------------|
| LED1 | Yellow | Off | Data is not being transmitted |
|------+--------+--------+-----------------------------------|
| LED2 | Green | On | Collision detected on network |
|------+--------+--------+-----------------------------------|
| LED2 | Green | Off | No collision detected on network |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTES |
|------------------------------------------------------------|
| There must be at least one other RangeLAN2 wireless node |
| on the network before a wireless connection can be made. |
+------------------------------------------------------------+
