# RACORE COMPUTER PRODUCTS, INC.
M8154
Card Type Network Interface Card
NIC Type Token Ring
Maximum Onboard Memory Unidentified
Boot ROM Available
Network Transfer Rate 4/16Mbps
Topology Ring
Wiring Type Shielded twisted pair
Unshielded twisted pair
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

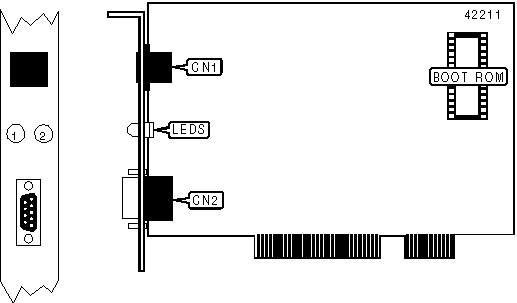

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| UTP via RJ-45 | CN1 | STP via DB-9 | CN2 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| Note: Colors and functions of LEDs are unidentified. |
+------------------------------------------------------------+
