# TRENDWARE INTERNATIONAL, INC.
TE-32E
NIC Type: Ethernet
Transfer Rate: 10Mbps
Data Bus: 32-bit EISA
Topology: Linear bus
Star
Wiring Type AUI transceiver via DB-15 port
RG-58A/U 50ohm coaxial
Shielded/Unshielded twisted pair
Boot ROM Available

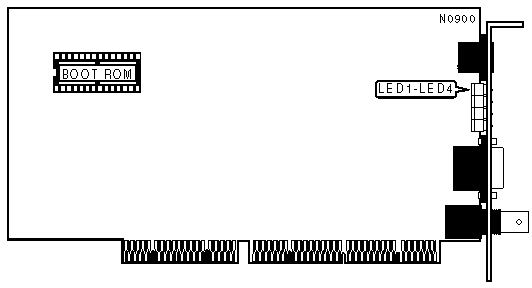

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LEDS |
|------------------------------------------------------------|
| LED | Status | Condition |
|------+----------+------------------------------------------|
| LED1 | On | Power on |
|------+----------+------------------------------------------|
| LED1 | Blinking | Data is being transmitted |
|------+----------+------------------------------------------|
| LED2 | On | Network connected successfully (UTP |
| | | connection only) |
|------+----------+------------------------------------------|
| LED2 | Blinking | Data is being received |
|------+----------+------------------------------------------|
| LED3 | On | Network is not connected (RG-58A/U 50ohm |
| | | coaxial connection only) |
|------+----------+------------------------------------------|
| LED3 | Blinking | Collision detected |
|------+----------+------------------------------------------|
| LED4 | Blinking | Transmission interrupted due to packet |
| | | longer than allowable length (jabber) |
+------------------------------------------------------------+
