# TRENDWARE INTERNATIONAL, INC.
ETHER-16T
NIC Type Ethernet
Transfer Rate 10Mbps
Data Bus 16-bit ISA
Topology Star
Wiring Type Unshielded twisted pair
Boot ROM Available

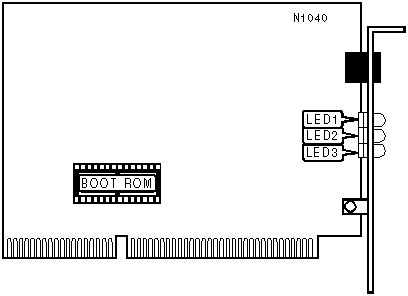

IMG IMG 1
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Status | Condition |
|----------+--------------+----------------------------------|
| LED1 | On | Power on |
|----------+--------------+----------------------------------|
| LED1 | Off | Power off |
|----------+--------------+----------------------------------|
| LED1 | Blinking | Data is transmitting |
|----------+--------------+----------------------------------|
| LED2 | On | Network connection is good |
|----------+--------------+----------------------------------|
| LED2 | Off | Network connection is broken |
|----------+--------------+----------------------------------|
| LED2 | Blinking | Data is being received |
|----------+--------------+----------------------------------|
| LED3 | On | Collision detected on network |
|----------+--------------+----------------------------------|
| LED3 | Off | No collision detected on network |
+------------------------------------------------------------+
